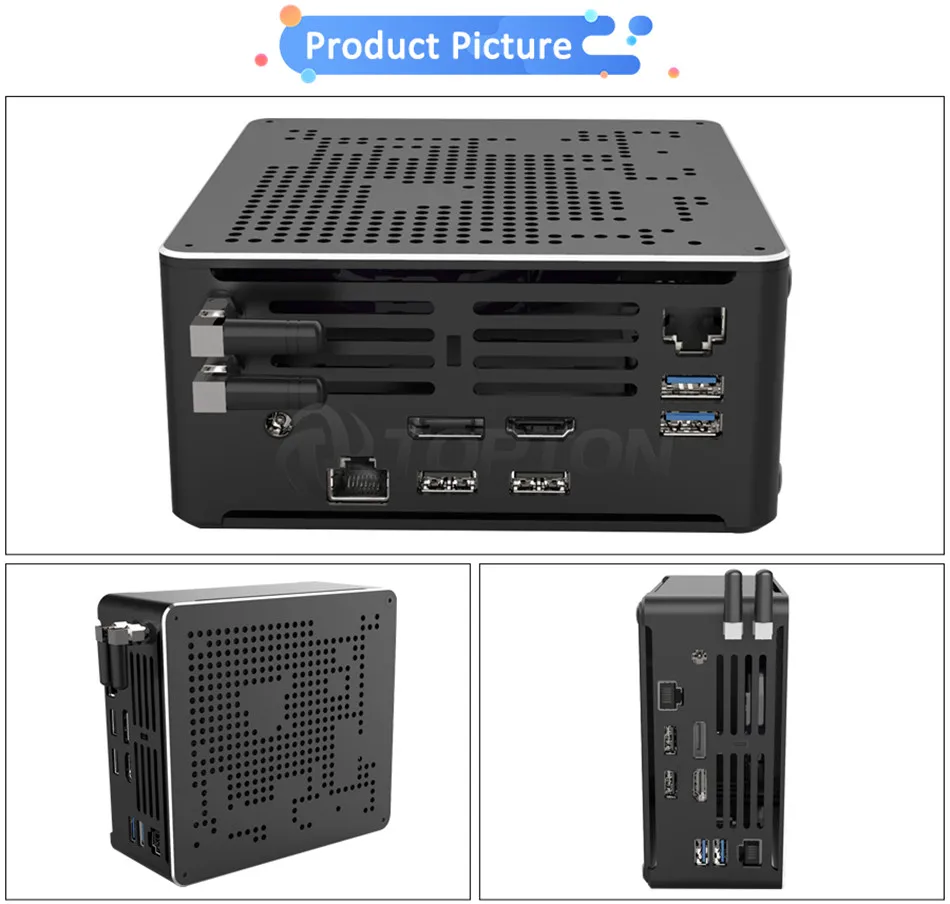

Description
SPECIFICATIONS
Brand Name: Topton
Memory Capacity: ≥ 4GB
Hard Drive Capacity: 1TB
Model Number: S210
Processor Model: Core/Xeon
Use: Multimedia
Origin: Mainland China
Type: Mini Desktop
Processor Main Frequency: Depends on CPU
Graphics Card Type: Integrated Card
Certification: CE
Certification: FCC
Certification: RoHS
Processor Brand: Intel
Type: MINI PC
Operating System: Windows 11/10, Linux, Ubuntu
Feature: Palm Size
Wireless: 2.4G/5G Wifi B/G/N/AC+bluetooth
Graphic Cards: Intel UHD Graphics 630
Product Size: 144*134*64MM
Color: Black
Case Material: Full Aluminum Alloy
Memory Capacity: 2*DDR4 SO-DIMM slots, max 64GB
Storage Type: 2*M.2 NVMe 22*80 SSD+1*2.5”HD
Display Ports: 1*HDMI, 1*DP
Ethernet 2*Lan Ports: 1*Intel i219-V+1*Realtek RTL8111
USB Ports: 4*USB3.0, 2*USB2.0, 1*USB-C 3.1
Big Sale for bundle with ram and storage:
1. Upgrade DDR4 ram to 2666MHz free!
2. Upgrade strong signal AC WiFi&Bluetooth free!
3. Upgrade to super fast M.2 NVME/PCIE3.0x4 SSD free!
Product Highlight

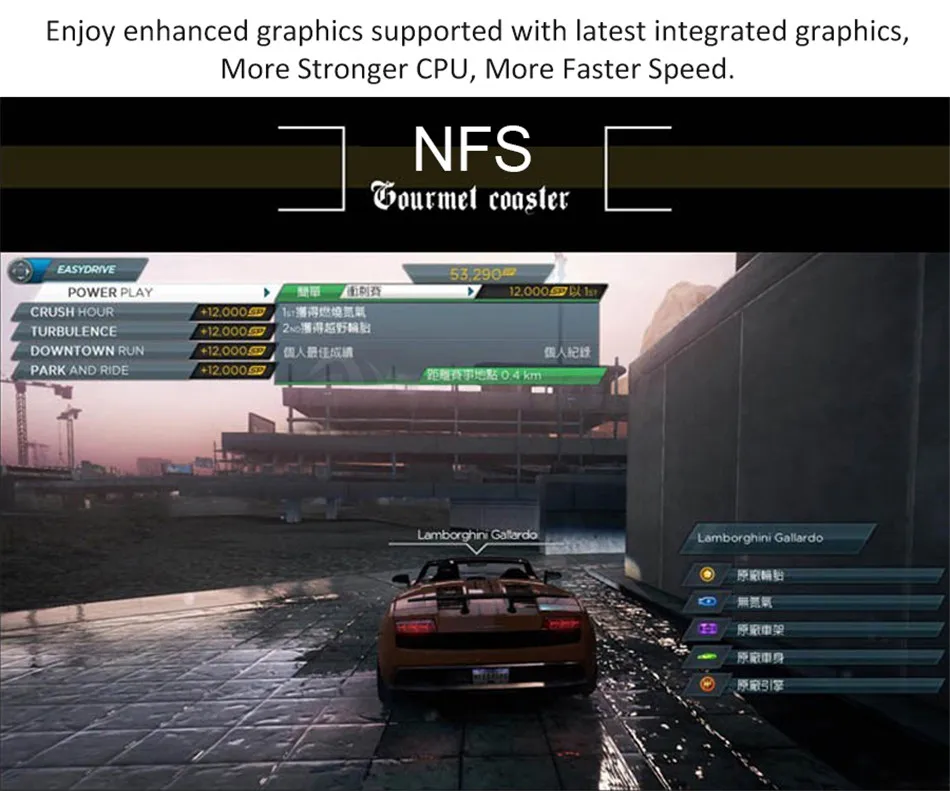

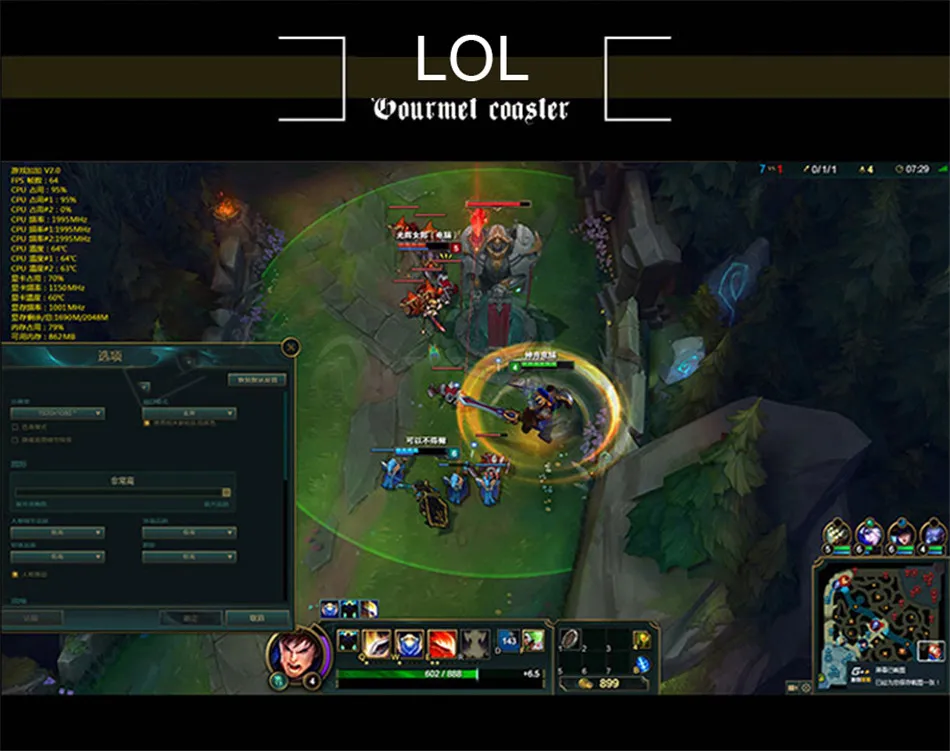

– Onboard Intel Coffee Lake 10th/9th/8th generation powerful processor for online games.
– 2xSODIMM DDR4 memory slot up to 64GB more powerful performance improve work efficiency and give you a smooth experience.
– Support HDMI2.0 and DP for dual 4K@60Hz display output synchronously, support HDR.
– Support 2*M.2 2280 NVME/PCIE3.0x4 SSD+1*2.5” SATA HDD/SSD.
– Support Intel optane technology(M.2 slot on rear of motherboard).
– Support 2*Gigabit RJ45 Lans+M.2 2230 2.4G/5G Dual band AC(AX) WiFi/Bluetooth.
Processor parameter for referance only
|
Processors |
Cores & Threads |
Cache |
Base Frequency |
Max Turbo Frequency |
Graphics |
|
Core i7-8750H |
6 cores, 12 threads |
9M |
2.20 GHz |
4.10 GHz |
Intel UHD Graphics 350MHz-1.10GHz |
|
Core i7-8850H |
6 cores, 12 threads |
9M |
2.60 GHz |
4.30 GHz |
Intel UHD Graphics 350MHz-1.15GHz |
|
Core i9-9880H |
8 cores, 16 threads |
16M |
2.30 GHz |
4.80 GHz |
Intel UHD Graphics 350MHz-1.20GHz |
|
Core i9-9980HK |
8 cores, 16 threads |
16M |
2.40 GHz |
5.00 GHz |
Intel UHD Graphics 350MHz-1.25GHz |
|
Core i5-10300H |
4 cores, 8 threads |
8M |
2.50 GHz |
4.50 GHz |
Intel UHD Graphics 350MHz-1.05GHz |
|
Core i7-10750H |
6 cores, 12 threads |
12M |
2.60 GHz |
5.00 GHz |
Intel UHD Graphics 350MHz-1.15GHz |
|
Core i7-10870H |
8 cores, 16 threads |
16M |
2.20 GHz |
5.00 GHz |
Intel UHD Graphics 350MHz-1.20GHz |
|
Core i9-10880H |
8 cores, 16 threads |
16M |
2.30 GHz |
5.10 GHz |
Intel UHD Graphics 350MHz-1.25GHz |
|
Core W-10885M |
8 cores, 16 threads |
16M |
2.40 GHz |
5.30 GHz |
Intel UHD Graphics 350MHz-1.25GHz |

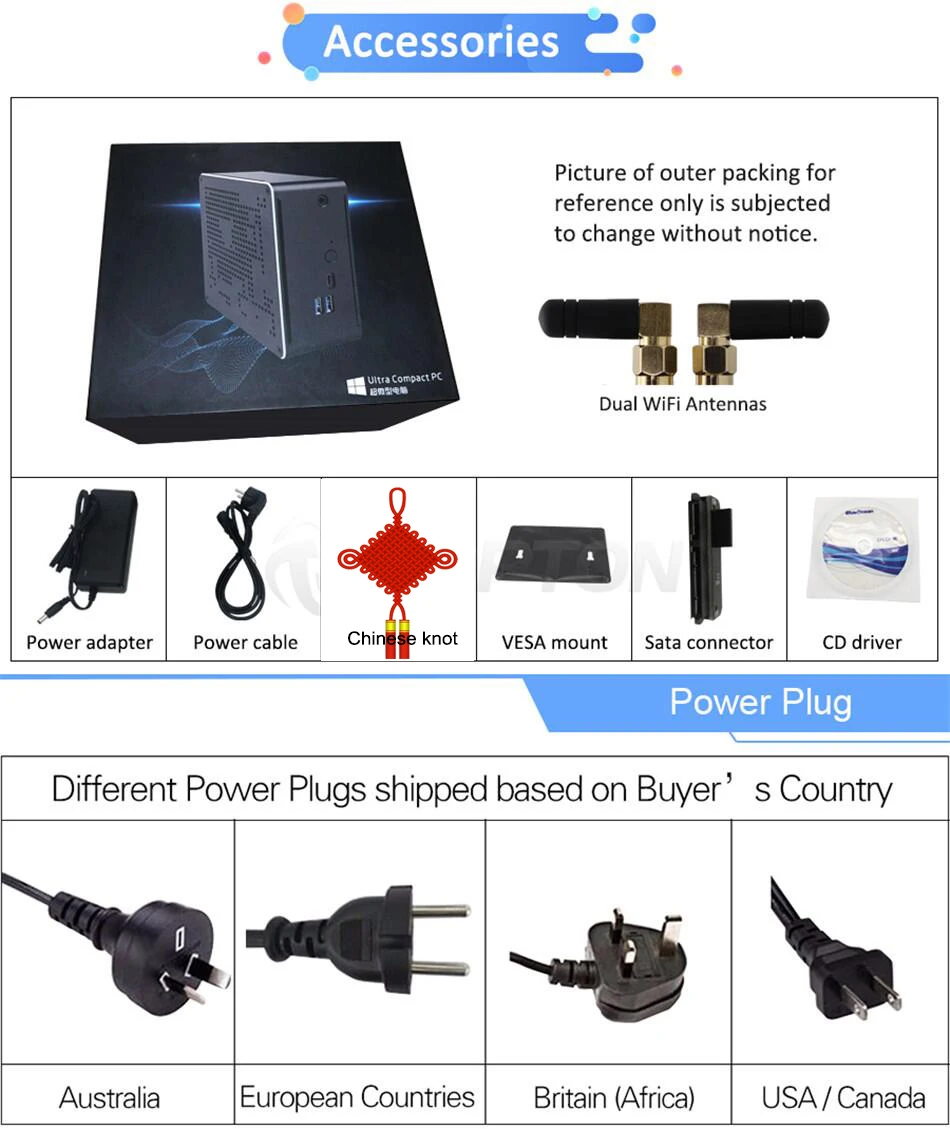

What’s in the package
1xMini PC
1xPower supply
1xPower cable( we ship correct power plug base on buyer’s address )
1xSATA Connector
1xVESA Bracket
1. Barebone Mini PC ("No Ram No HD No WiFi" bundle) package DO NOT include WiFi(antennas), if you need, please pay extra US $10 at this link. Other bundles include WiFi(antennas).
2. DO NOT buy Barebone Mini PC ("No Ram No HD No WiFi" bundle)If you are NOT IT hardware technician. PC demands professional skill to assemble and debug. Barebone bundle had best to use Samsung, Micron etc ORIGINAL brand ram and storage. We are afraid to see you suffer a bad shopping experience and DO NOT compensate for buyer’s man-made damage and faulty.
|
Basic Information: |
|
|
CPU |
Intel |
|
CPU install Method |
BGA1440 |
|
TDP |
45W |
|
Motherboard |
120 x 120mm customized size |
|
Code Name |
Intel Coffee Lake |
|
Chipset |
Intel 300/400 series PCH |
|
Memory |
2 x SO-DDR4 SDRAM Slot, up to 64GB Dual Channel, DDR4 2133/2400/2666 260pin |
|
OS |
Windows 10/11, Linux, Ubuntu etc supported |
|

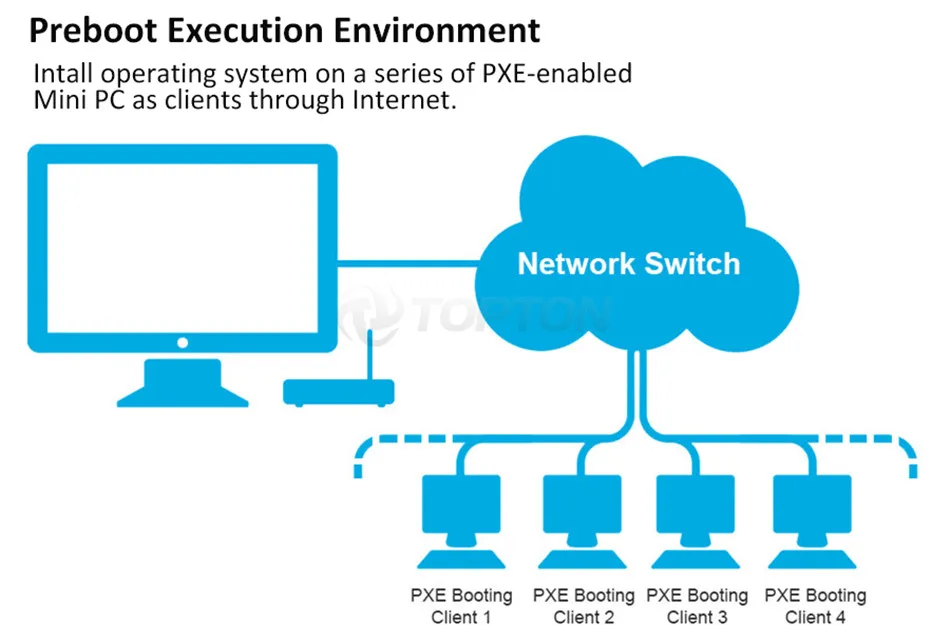

PXE |
Yes |
|
Audio |
Azalia Codec support 2.1 channel output High Definition Audio Controller |
|
Network |
Onboard 1*Intel i219-V+1*Realtek RTL8111 Gigabit Ethernet NIC 10/100/1000 BaseT LAN |
|
Video |
Intel® UHD Graphics 630 |
|

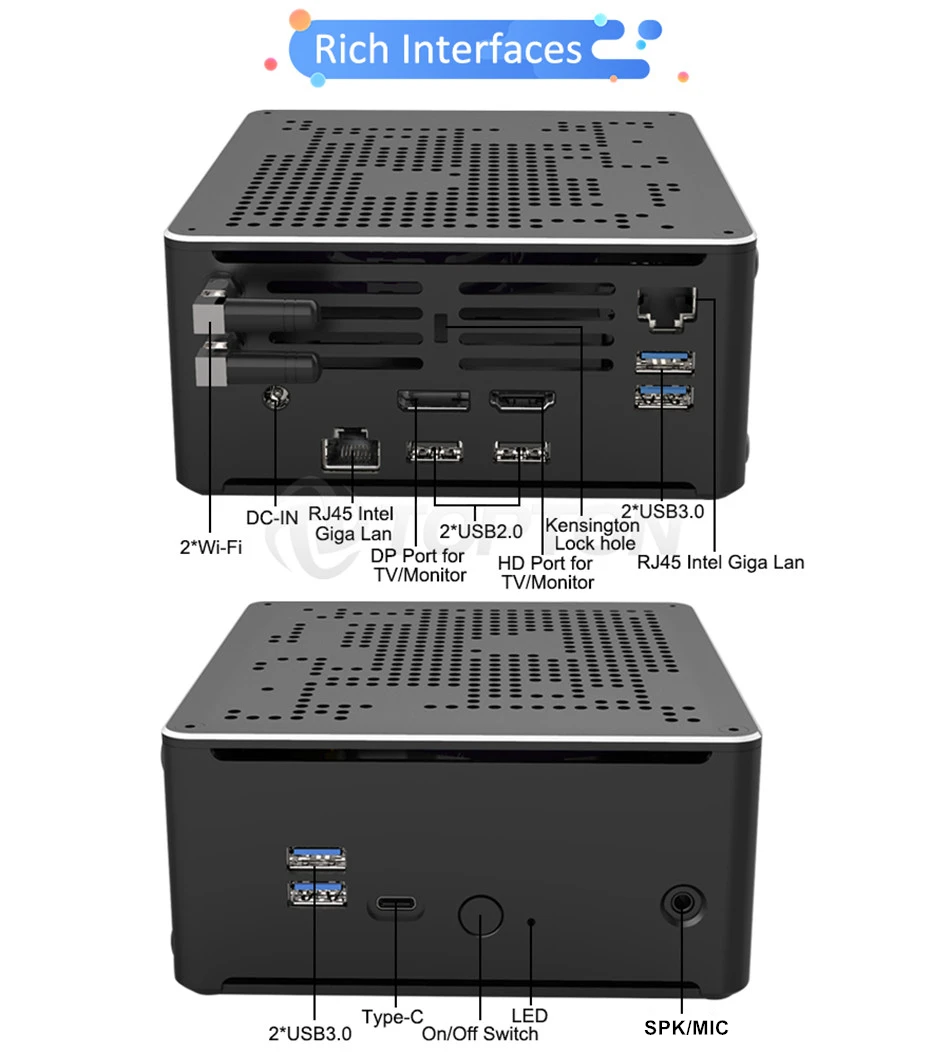

Input/output port |
|
|
Switch |
1 x Power On/Off Switch |
|
Power |
1 x 19V DC In |
|
LED |
1 x LED |
|
USB |
4 x USB3.0, 2 x USB2.0 |
|
USB-C |
1 x Type-C USB3.1 |
|
Display |
1 x DP, 1 x HDMI |
|
LAN |
2 x RJ45 Giga LAN |
|
Audio |
1 x Audio(MIC&SPK) |
|
Others |

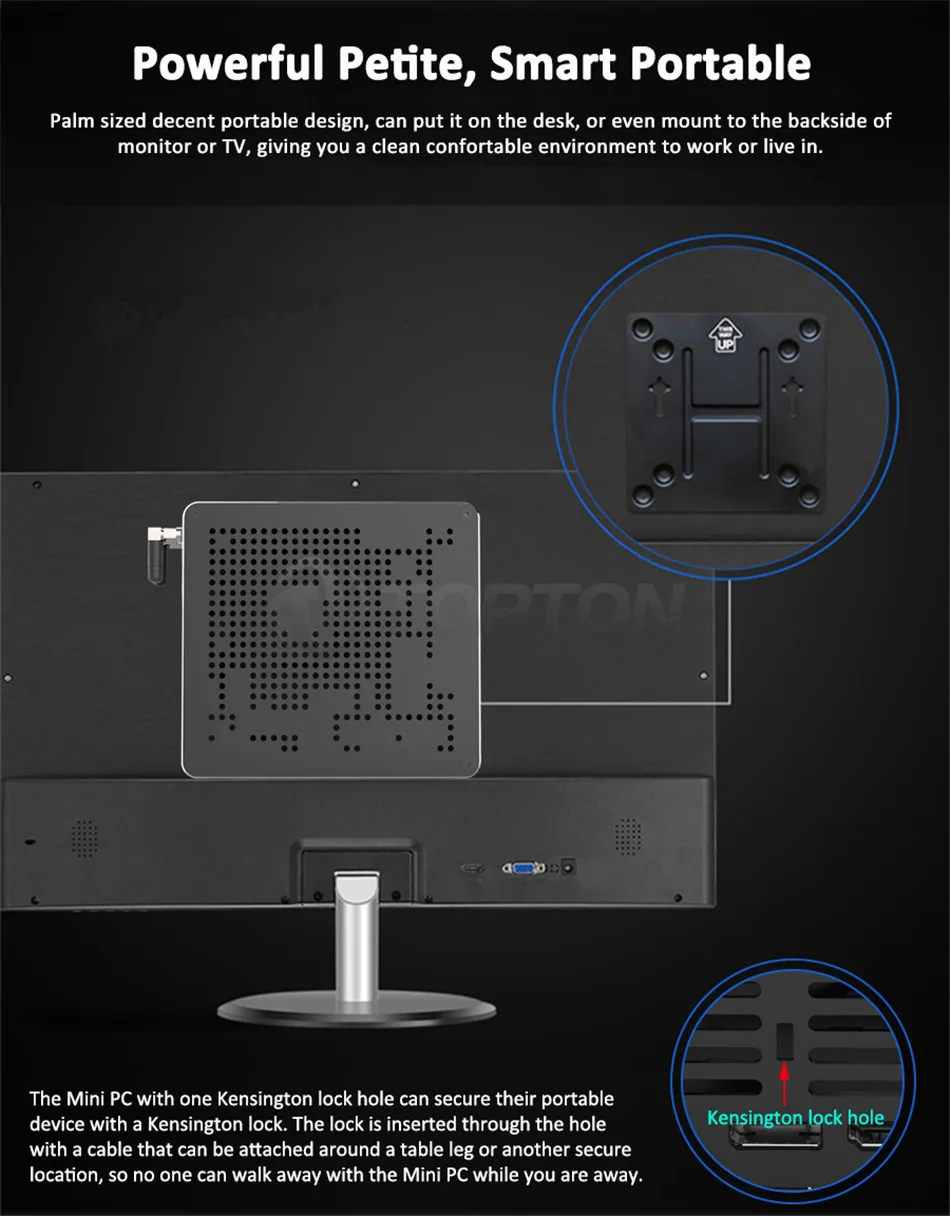

1 x Kensington Lock hole |
|
Storage |
|
|
M.2 |
1 x M.2 slot for M.2 NGFF 22*80, up to 2TB(Only NVME), support 32Gb/s 1 x M.2 slot for M.2 NGFF 22*80, up to 2TB(NGFF/NVME), support 32Gb/s,support intel optane technology |
|
SATA |
1 x SATA3.0 slot for 9.5mm SATA HDD or SSD, up to 3TB, support 6Gb/s |
|
Wi-Fi |
|
|
Module |
1 x M.2 NGFF 2230 slot for Wi-Fi module |
|
Antenna |
2 x inner RF cables and 2 x external antennas |
|
Power and Working Environment |
|
|
Input |
DC100-240V AC/50-60Hz |
|
Output |
DC +12V~+19V, recommend 19V/3~5A |
|
Operating Temperature |
0/70 Centigrade |
|
Storage Temperature |
-20/+80 Centigrade |
|
Relative Humidity |
0%~90% (non-condensing) |
|

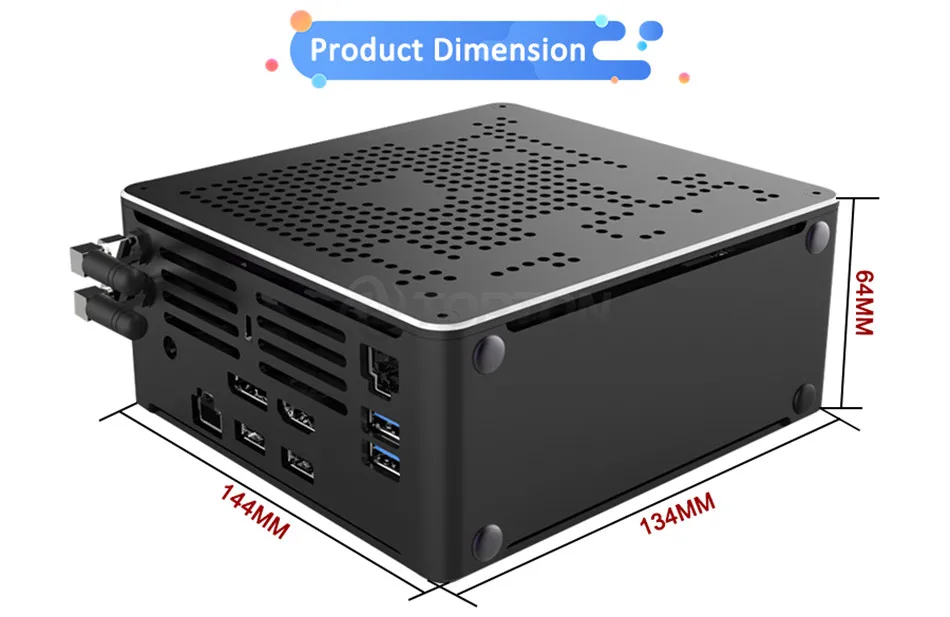

Product Dimension & Details |
|
|
Size |
134*144*64mm |
|
Weight |
Net 1.05kg, Gross 2.5kg |
|
Shell |
Brushed Black color aluminum alloy, a film covered on surface |
|
Cooling Mode |
Silent Cooling Fan |
|
Functions |

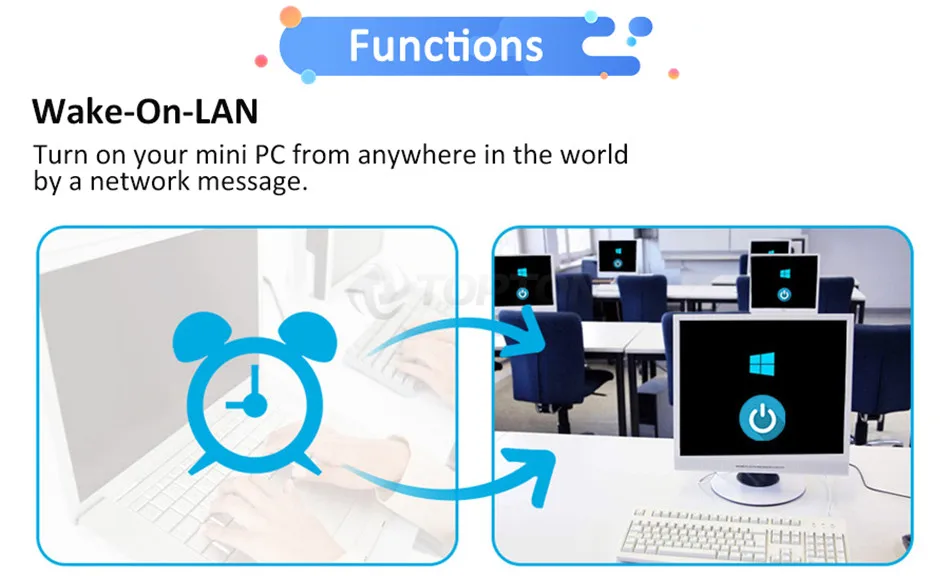

Support PXE, AWAL, RTC |
|
Package Content |
|
|
Standard |
1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, Wi-Fi antennas, 1xUser Manual |
Free Operating System: Default installed our trial activated OEM windows 10 pro English for free, other languages can be selected among: Russian,Spanish,Portuguese,French,German,Arabic,Italian,Japanese,Turkish,Greek etc. Please inform us which language you want to install. Other systems we can install free are like Linux, Ubuntu etc if you need.Seller is NOT responsible and makes no compensation for trial OEM system.
1.Genuine OEM license sticker add extra cost 35$.
2. 500GB 2.5” HDD add extra 50$, 1TB 2.5” HDD add extra 65$, 2TB 2.5” HDD add extra 100$.
3. Intel AX200 WiFi6 Bluetooth5.1 card add extra 40$.
Upgrading link:https://www.aliexpress.com/item/32738298207.html
(How many dollars to upgrade, pay how many pieces, US$1=1pcs, For example upgrade USB IR remote, pay 14pcs for US$14, remember to leave message noting which one you upgrade for…)
